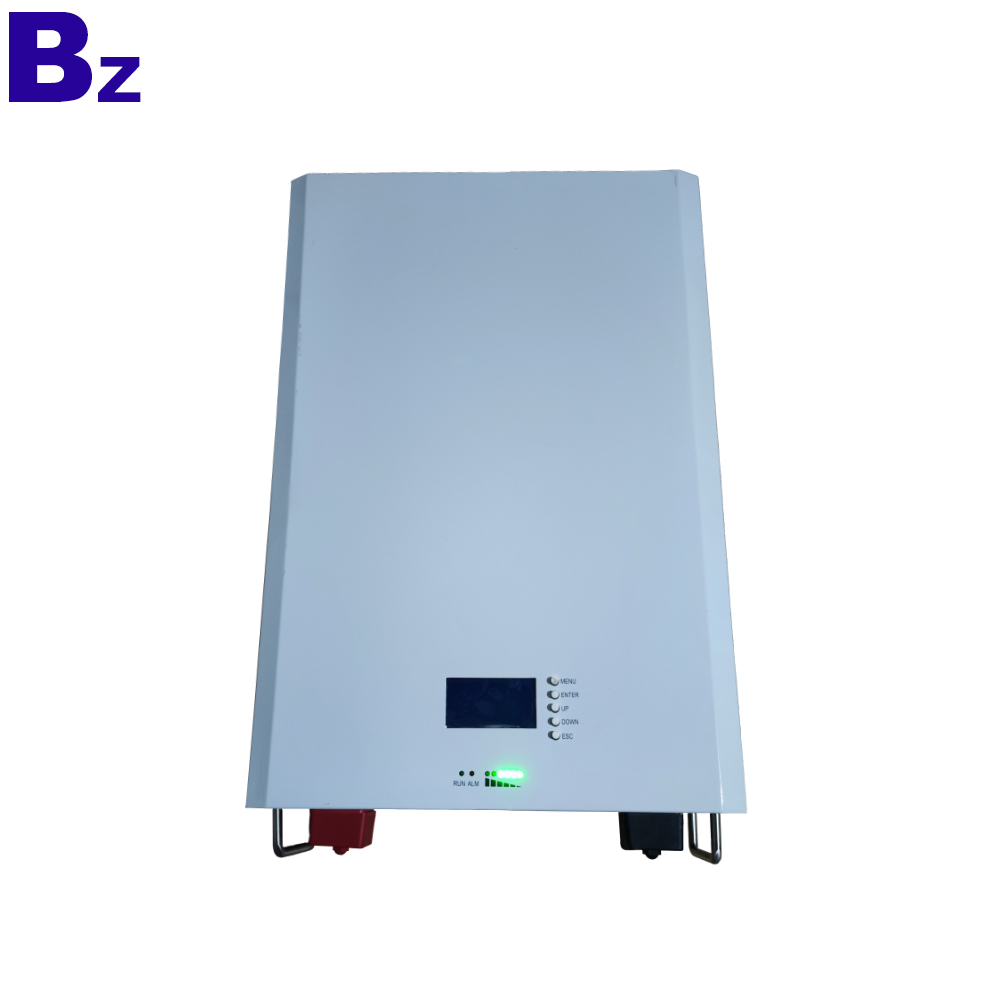

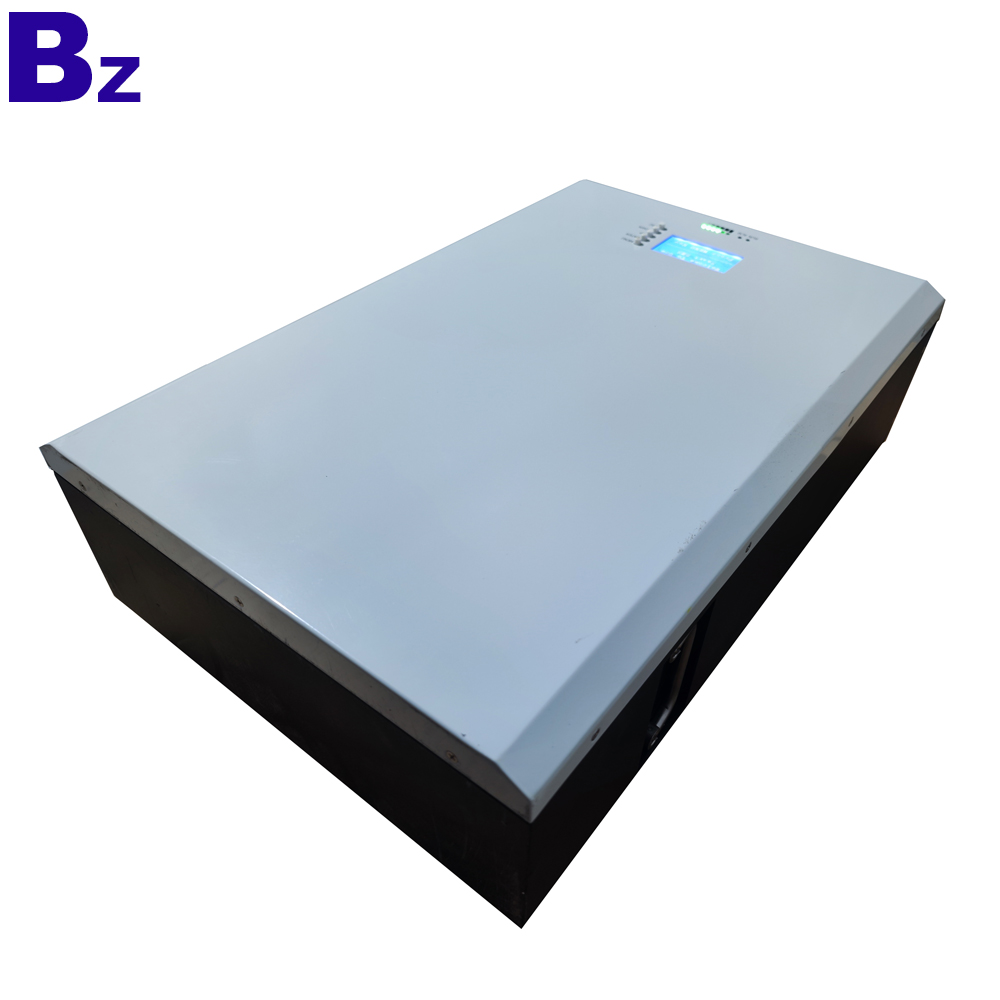

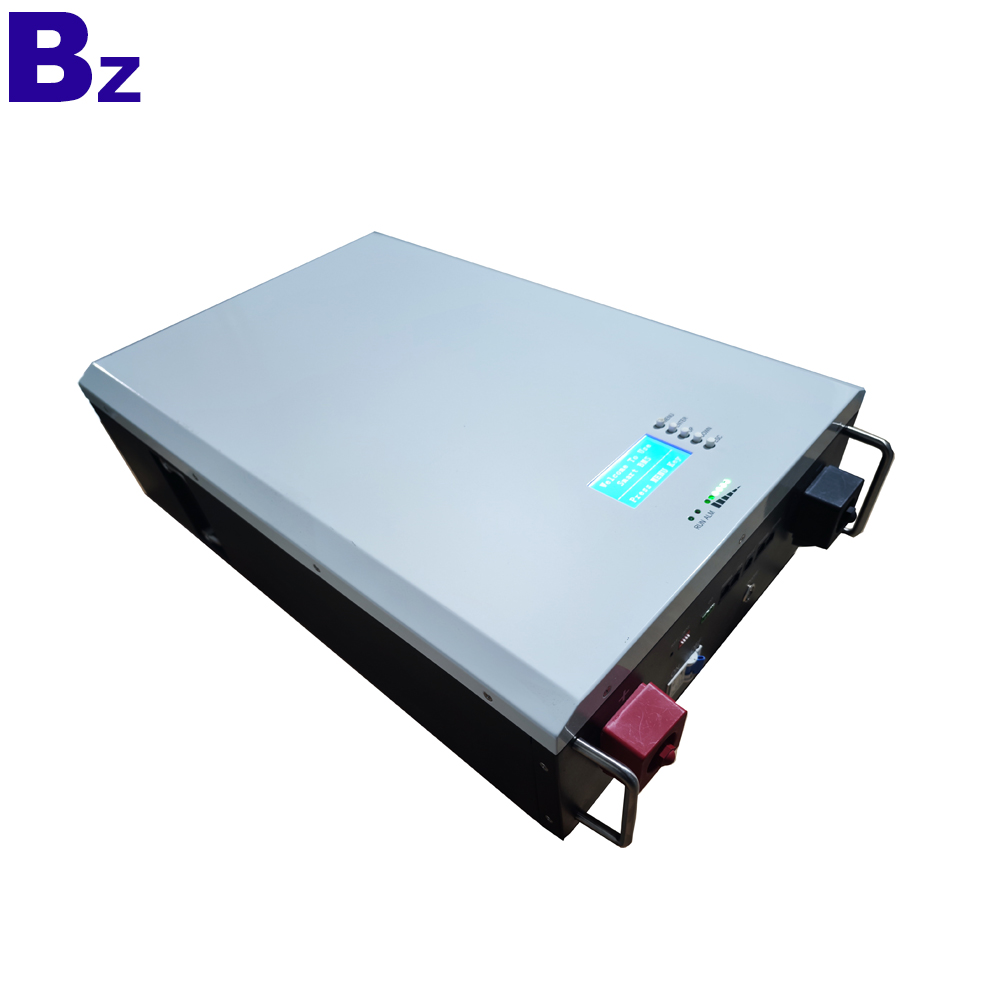

Supply Wall Mounted Battery LiFePO4 51.2V 48V 100Ah 5KWH Solar Home System Battery Pack
$877.00
In stock
SKU
5kWh Battery Pack
Min.Order Quantity: 1 PCS
Please contact us for the order !
- Place of Origin: Guangdong, China
Brand Name: BZ
Model Number: TH-48200-W
Type: LiFePO4
Nominal Voltage: 48V / 51.2V
Output Power: 5kWh
Communication: CAN, RS232, RS485
Warranty: 5 Year
Weight: 64kg
Application: Home Solar Energy Storage System
Certificate: UN38.3/MSDS/ROHS
Payment: Paypal.TT.Escrow.Western Union
Benzo Energy • UFine Technology' Lithium battery test laborator
Product Parameters
|
Model |
TH-48200-W |
|
Nominal Voltage |
48V / 51.2V |
|
Cell model / Configuration |
3.2V 100Ah(ANC) / 15S2P |
|
Capacity |
100Ah |
|
Rated Energy |
5kWh |
|
Usable Energy |
4.05kWh |
|
Max. Charge / Discharge Current |
100A / 100A |
|
Voltage Range (Vdc) |
48-56.5V |
|
Scalability |
Up to 10 parallel |
| Communication |
RS232-PC, RS485(B)-BAT RS485(A)-inverter,Canbus-inverter |
|
Cycle Life |
≥6000cycles@25℃, 90% DOD, 60%EOL |
|
Design Life |
≥15 Years(25℃) |
|
Weight (Approx) |
57kg |
|
Dimension (W/D/H) |
485*690*186(226 Including hanger)mm |
|
Installation Mode |
Wall hanging |
|
IP Grade |
IP21 |
|
Operating Temperature (℃) |
Charge: -10℃ ~ 50 ℃； Discharge: -20℃ ~ 50℃ |
|
Altitude (m) |
≤2000 |
|
Humidity |
≤90% (Non-condensing) |
