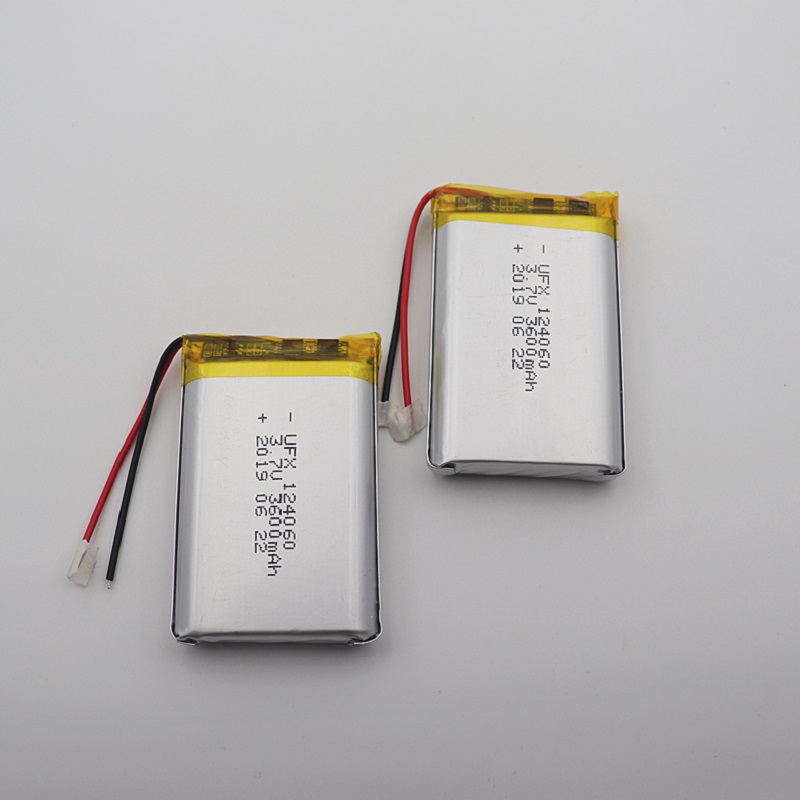

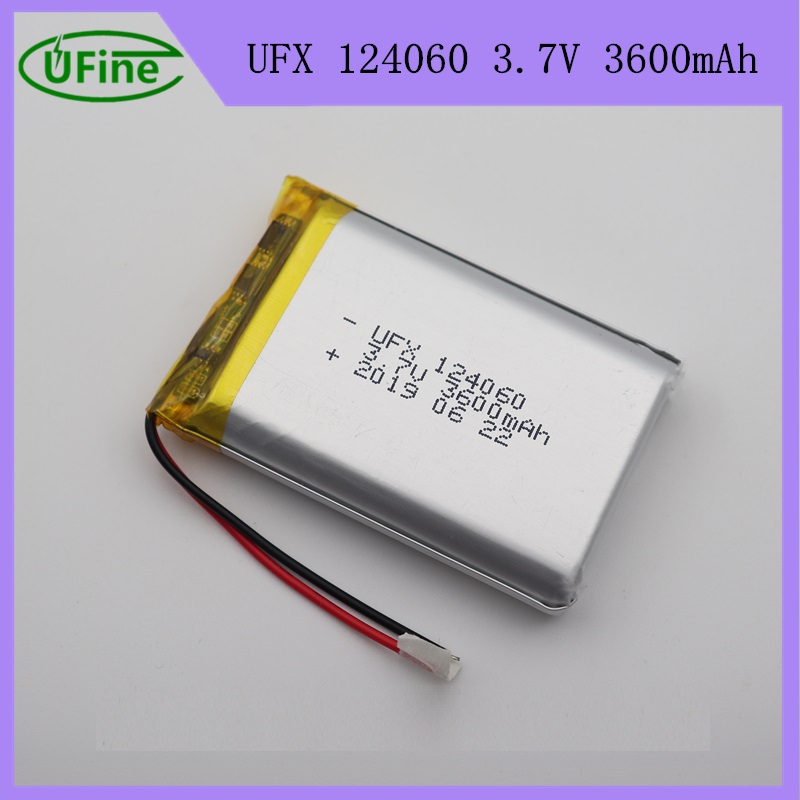

China Lithium Cells Supplier Wholesale Cheap Li-polymer Battery for Medical Devices UFX 124060 3600mah 3.7V Lipo Battery
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
- Place of Origin: Guangdong, China
- Brand Name: UFX
- Model Number: 124060
- Type: Li-polymer
- Nominal Voltage: 3.7V
- Size: 12*40*62mm
- Nominal Capacity: 3600mAh
- Cycle life: 500 Times
- Certificate: CE/RoHS/UN38.3/MSDS/FCC
- Weight: 65g
- Warranty: 12 Months
- Battery type: Li Polymer Battery Cells
- Model: 124060
- Voltage: 3.7V
- Capacity: 3600mah
- Application: Electronic Equipment
- Charge current: 0.2C~1C
Specification:
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
Typical |
3650mAh |
Standard discharge(0.2C C5A) after Standard charge |
Minimum |
3600mAh |
|||
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
|
3 |
Voltage at end of |
3.0V |
Discharge Cut-off Voltage |
|
Discharge |
||||
4 |
Charging Voltage |
4.2±0.03V |
||
5 |
Internal Impedance |
≤70mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
6 |
Standard charge |
Constant Current 0.2C5A |
Charge time : Approx 6h |
|
Constant Voltage 4.2V |
||||
0.01 C5A cut-off |
||||
7 |
Standard discharge |
Constant current 0.2 C5A |
||
end voltage 3.0V |
||||
8 |
Fast charge |
Constant Current 0.5C5A |
Charge time : Approx 2.5h |
|
Constant Voltage 4.2V |
||||
0.01 C5A cut-off |
||||
9 |
Fast discharge |
Constant current 0.5C5A |
||
end voltage 3.0V |
||||
10 |
Maximum Continuous Charge Current |
1 C5A |
||
11 |
Maximum Continuous Discharge Current |
1C5A |
||
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
Bare Cell |
||||
Discharge: -20~60℃ |
||||
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
14 |
Pack Dimension |
High: max62mm Width: max40mm |
Initial Dimension |
