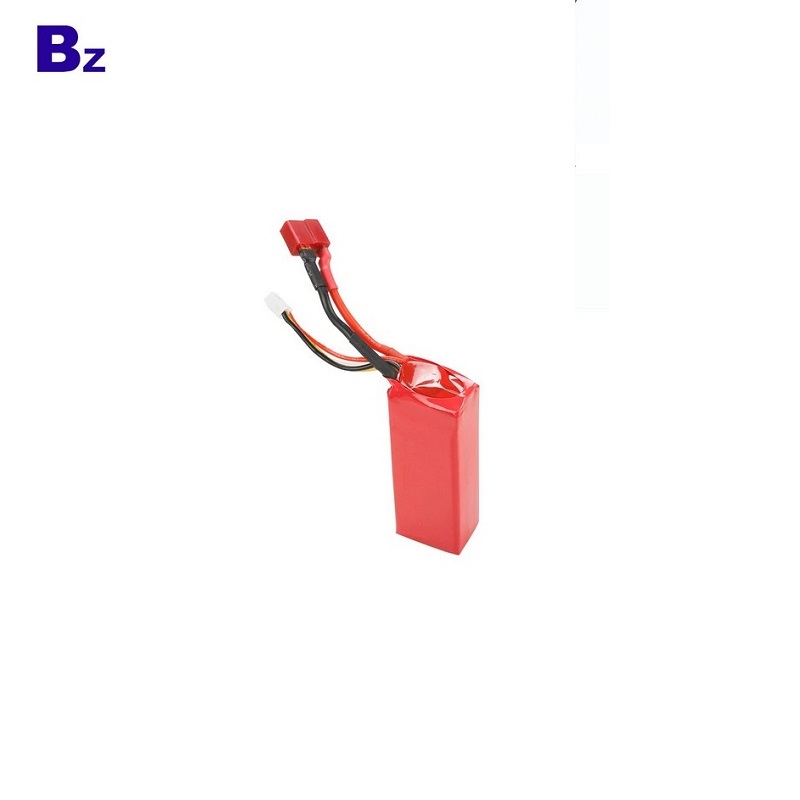

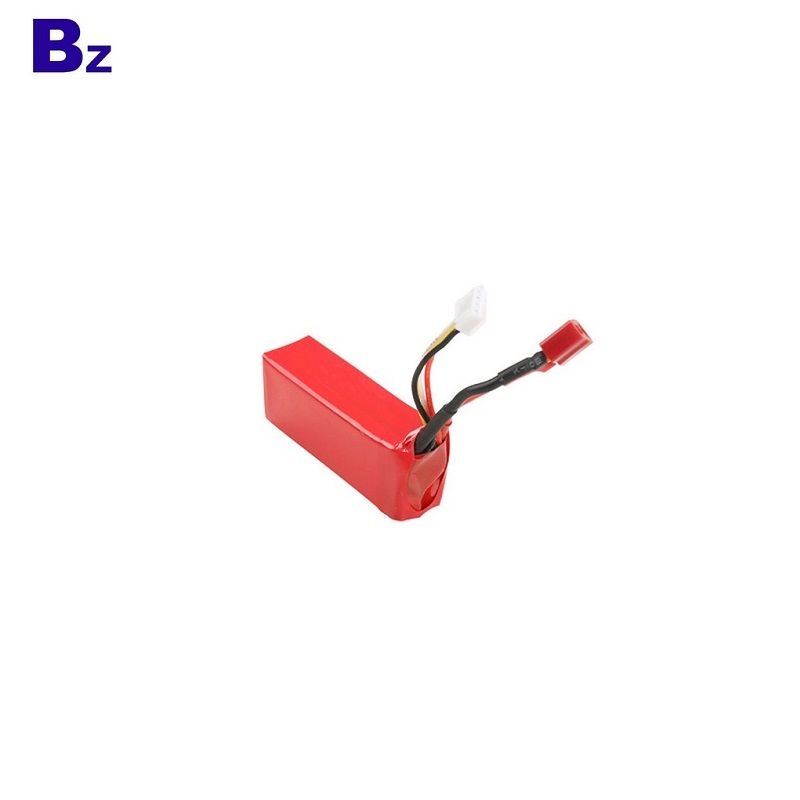

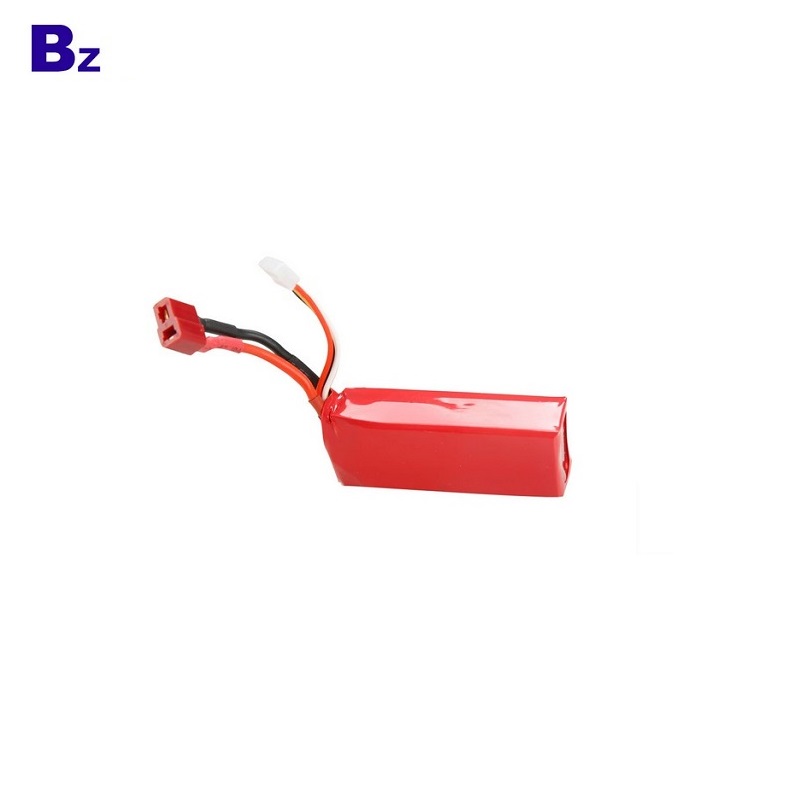

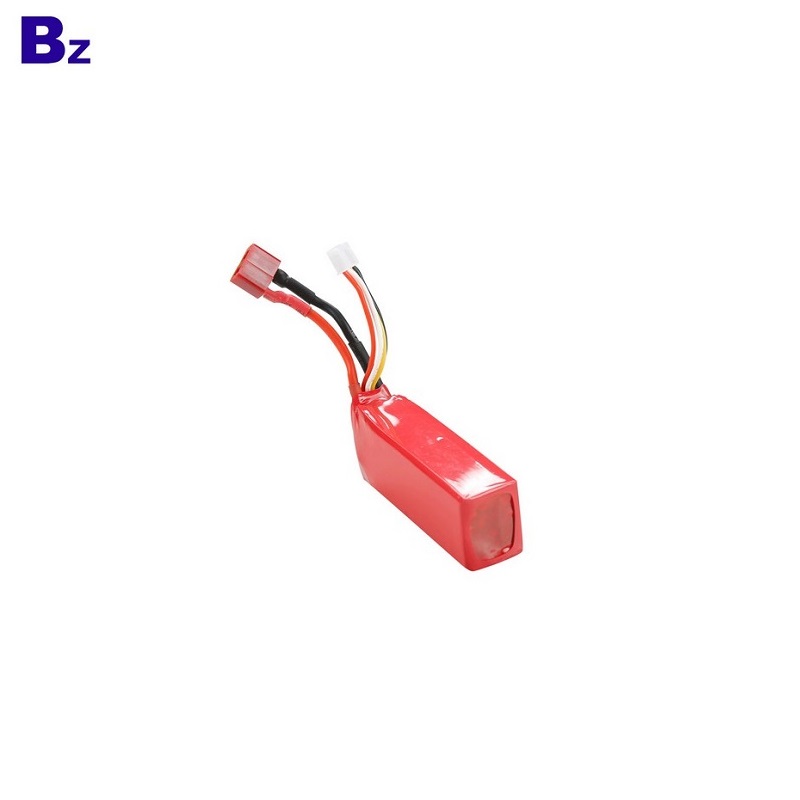

China Lithium Cells Supplier Customize High Quality Lipo Battery for RC Drone BZ 703048 850mAh 25C 7.4V RC battery
FOB Price: US $4.5 - 4.8 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
Place of Origin: Guangdong, China
Brand Name:703048 850mah 25C 7.4V
Model Number: 703048
Type: Li-polymer
Nominal Voltage: 7.4V
Size: 14*30*52mm
Nominal Capacity: 850mAh
Certificate: CE/RoHS/UN38.3/MSDS/FCC
Cycle life: 500 Times
Weight: 38g
Warranty: 12 Months
Battery type: Li Polymer Battery Cells
Model: 703048
Voltage: 7.4V
Application: Rc Drone
Payment: Paypal.TT.Escrow.Western Union
Charge current: 0.2C~1C
Specification:
NO |
Items |
Criteria |
Remarks |
2.1 |
Typical Capacity |
850mAh |
Discharge:0.2CmA cut-off voltage:9.0V 0.2C |
Minimum Capacity |
850mAh |
||
2.2 |
Energy |
6.29Wh |
|
2.3 |
Nominal Voltage |
7.4V |
|
2.4 |
Open Circuit Voltage |
7.4V~8.4 |
|
2.5 |
Internal Impedance |
≤50milliohm |
AC 1KHz after standard charge |
2.6 |
Charge voltage |
8.4V |
|
2.7 |
Standard charge current |
850mA |
1.0C |
2.8 |
Max. charge current |
1700mA |
2.0C |
2.10 |
Max. discharge current |
20A( 25.0C) |
Cont Discharge Current |
40.0A (50.0C) |
Burst Discharge Current |
||
2.11 |
Discharge cut-off voltage |
6.0V |
|
2.12 |
Operating Temperature |
0~+45℃ |
Charging |
-10~+50℃ |
Discharging |
