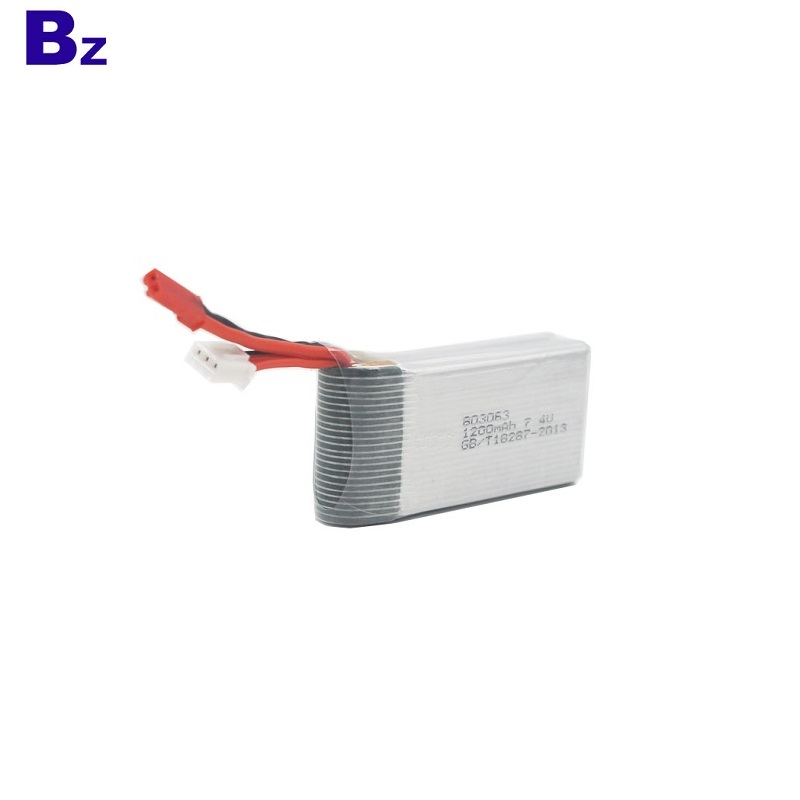

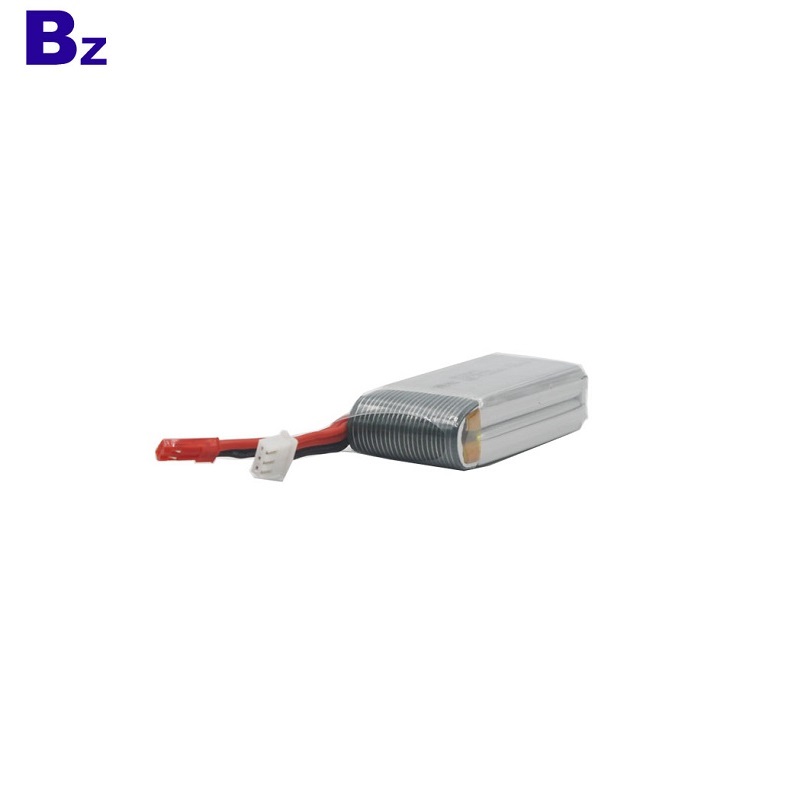

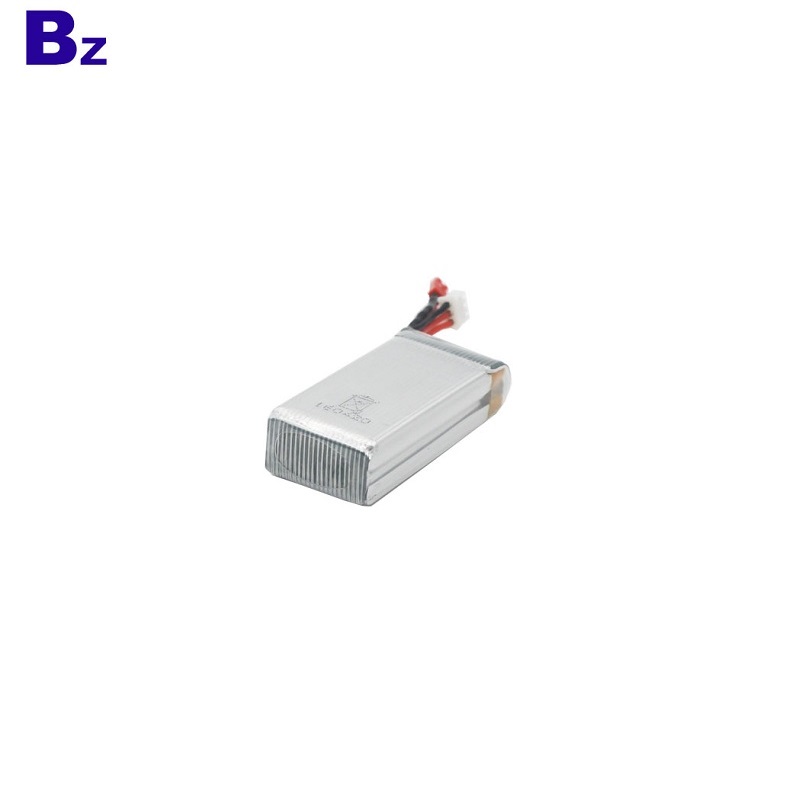

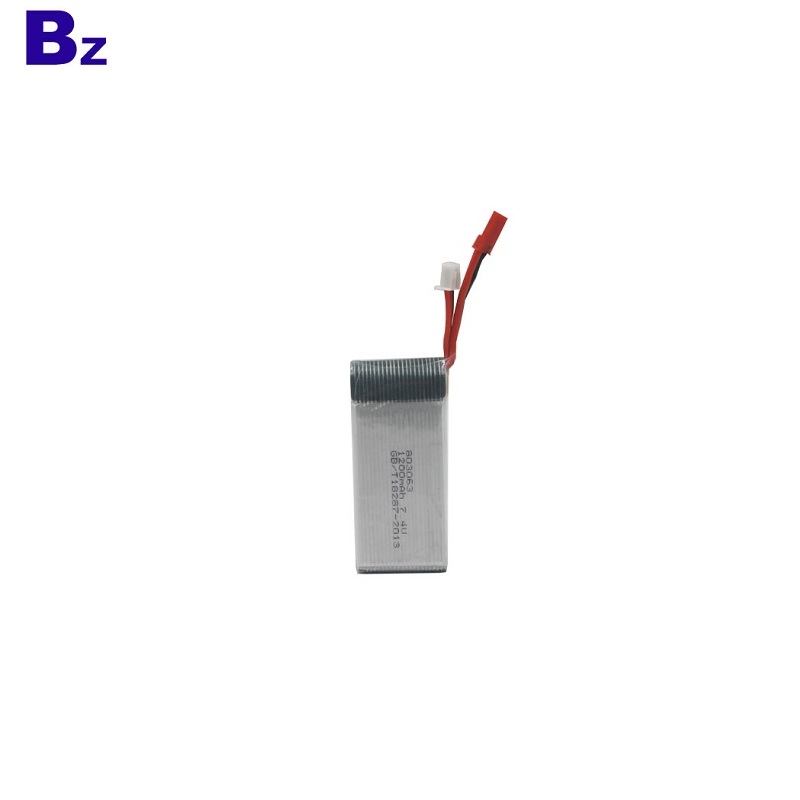

China Lithium Battery Manufacturer Wholesale High Rate Battery BZ 803063 1200mAh 15C 7.4V Lipo Battery For RC Models
FOB Price: US $1.5 - 2/ Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
- Place of Origin: Guangdong, China
- Brand Name: BZ
- Model Number: 803063
- Type: Li-polymer
- Nominal Voltage: 7.4V
- Size: 8*30*65mm
- Nominal Capacity: 1200mAh
- Product name: 803063
- Warranty: 1 Year
- Weight: 20g
- Cycle life: 500 Times
- Capacity: 1200mah
- Voltage: 7.4V
- Application: RC Models Products
- Certificate: CE/RoHS/UN38.3/MSDS
- Payment: Paypal.TT.Escrow.Western Union
- Max charge current: 1C
Specification:
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
Typical |
1200mAh |
Standard discharge(0.2C C5A) after Standard charge |
Minimum |
1150mAh |
|||
2 |
Nominal Voltage |
7.4V |
Mean Operation Voltage |
|
3 |
Voltage at end of |
6.0V |
Discharge Cut-off Voltage |
|
Discharge |
||||
4 |
Charging Voltage |
8.4±0.03V |
||
5 |
Internal Impedance |
≤40mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
6 |
Standard charge |
Constant Current 1C5A |
Charge time : Approx 6h |
|
Constant Voltage 8.4V |
||||
0.01 C5A cut-off |
||||
7 |
Standard discharge |
Constant current 15 C5A |
||
end voltage 6.0V |
||||
8 |
Fast charge |
Constant Current 2C5A |
Charge time : Approx 2.5h |
|
Constant Voltage 8.4V |
||||
0.01 C5A cut-off |
||||
9 |
Fast discharge |
Constant current 15C5A |
||
end voltage 6.0V |
||||
10 |
Maximum Continuous Charge Current |
2C5A |
||
11 |
Maximum Continuous Discharge Current |
15C5A |
||
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
Bare Cell |
||||
Discharge: -20~60℃ |
||||
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
14 |
Pack Dimension |
High: max65mm Width: max30mm |
Initial Dimension |
