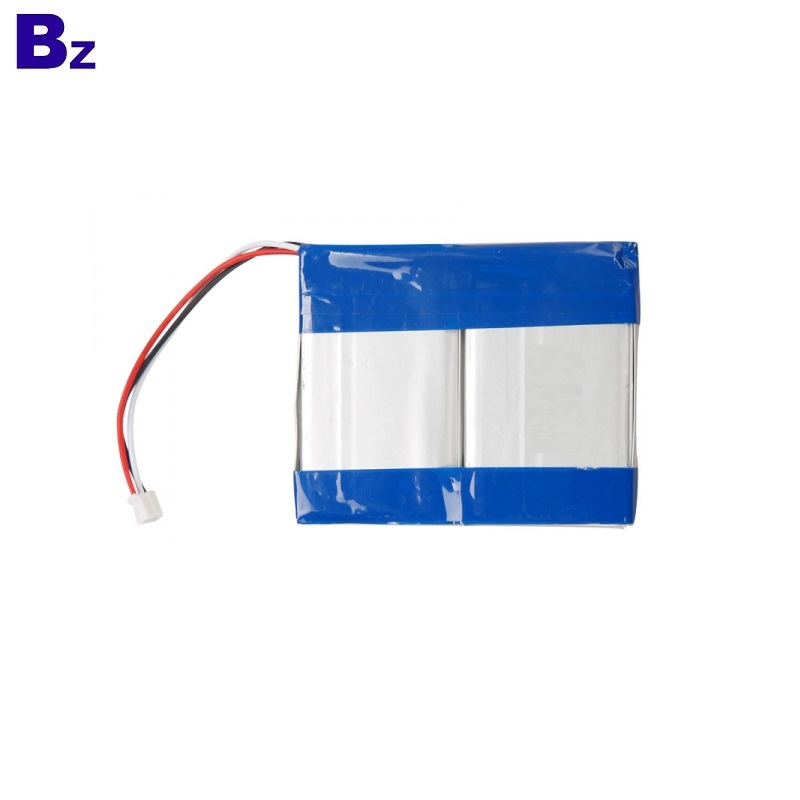

China Lithium Battery Manufacturer Customize Medical Battery BZ 675696 7.4V 1800mAh Rechargeable Lipo Battery
Price: US $4.5-4.8 / Piece
Min. Order: 1,000 Pieces
Please contact us for the order !
Brand Name: BZ
Model Number: 675696
Type: Li-polymer
Nominal Voltage: 7.4V
Size: 13.5*56*99mm
Nominal Capacity: 1800mAh
Product name: 675696 2S Li-ion battery
Warranty: 1 Year
Weight: 34g
Cycle life: 500 Times
Capacity: 1800mAh
Voltage: 7.4V
Application: Medical Device
Certificate: CE/RoHS/UN38.3/MSDS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
Medical Battery - BZ 675696 - 7.4V - 1800mAh - Lithium Ion Battery - Rechargeable
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
Typical
|
1850mAh |
Standard discharge(0.2C C5A) after Standard charge
|
Minimum |
1800mAh |
|||
2 |
Nominal Voltage |
7.4V |
Mean Operation Voltage |
|
3 |
Voltage at end of Discharge |
5.8V |
Discharge Cut-off Voltage |
|
4 |
Charging Voltage
|
8.4±0.03V |
|
|
5 |
Internal Impedance
|
≤160mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
6 |
Standard charge |
Constant Current 0.2C5A Constant Voltage 8.4V 0.01 C5A cut-off |
Charge time : Approx 6h |
|
7 |
Standard discharge
|
Constant current 0.2 C5A end voltage5.8V |
|
|
8 |
Fast charge
|
Constant Current 1.0C5A Constant Voltage 8.4V 0.01 C5A cut-off |
Charge time : Approx 2.5h |
