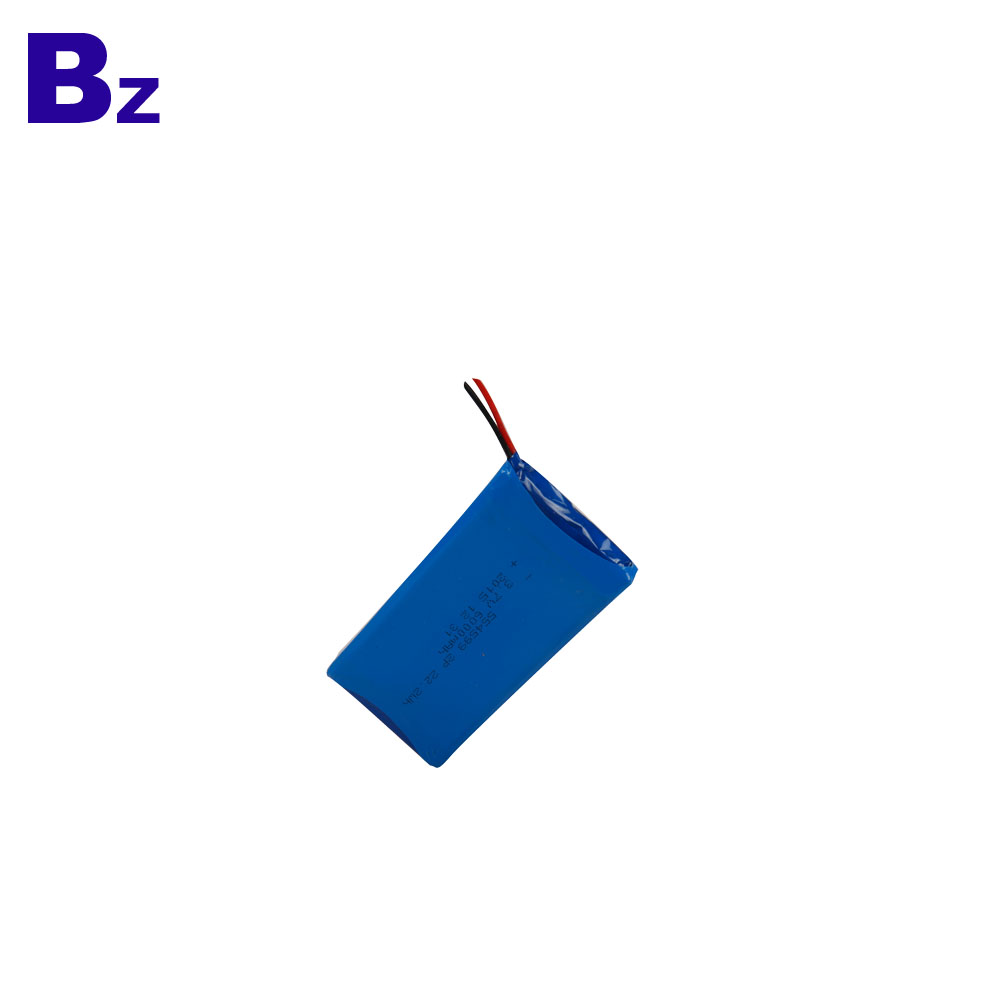

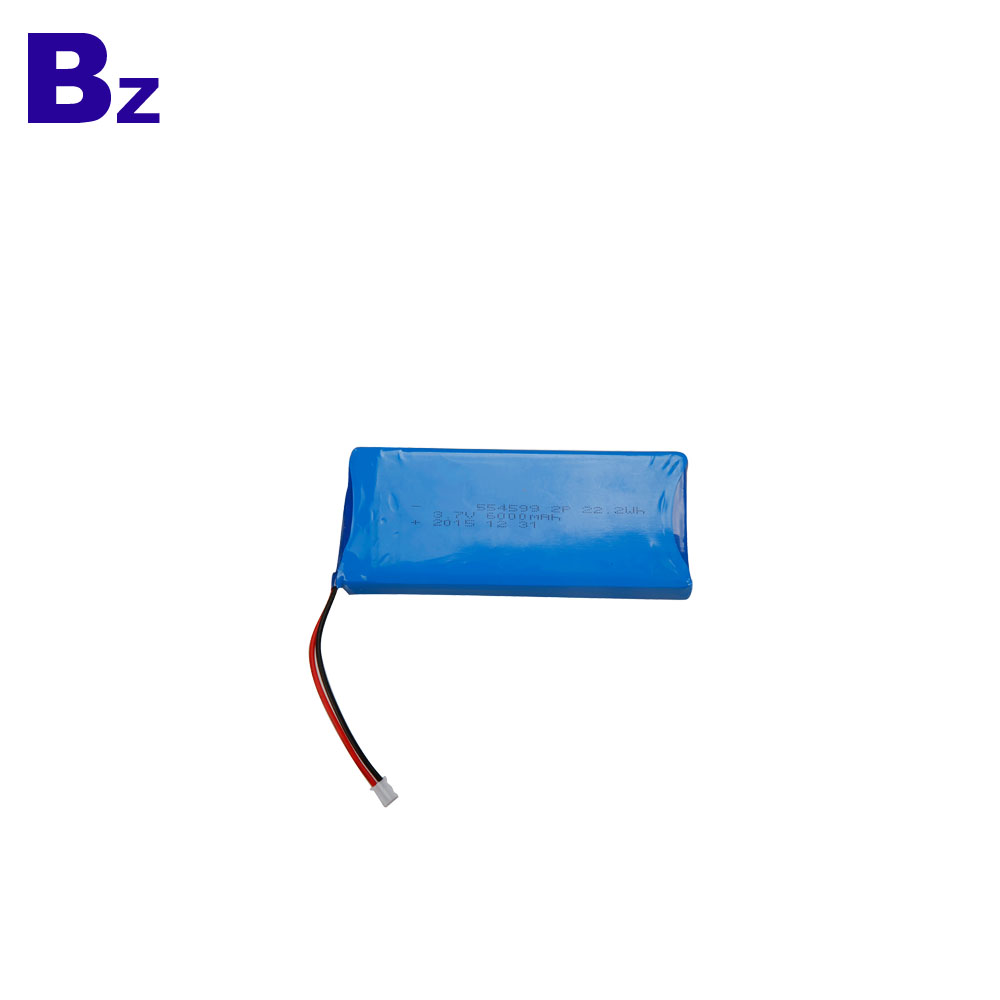

China Lithium Battery Manufacturer Customize Battery For Medical Device BZ 554599 2P 6000mAh 3.7V Li-Polymer Battery
Price: US $6.6-7.2 / Piece
Min. Order: 1,000 Pieces
Please contact us for the order !
Brand Name: BZ
Model Number: 554599
Type: Li-polymer
Nominal Voltage: 3.7V

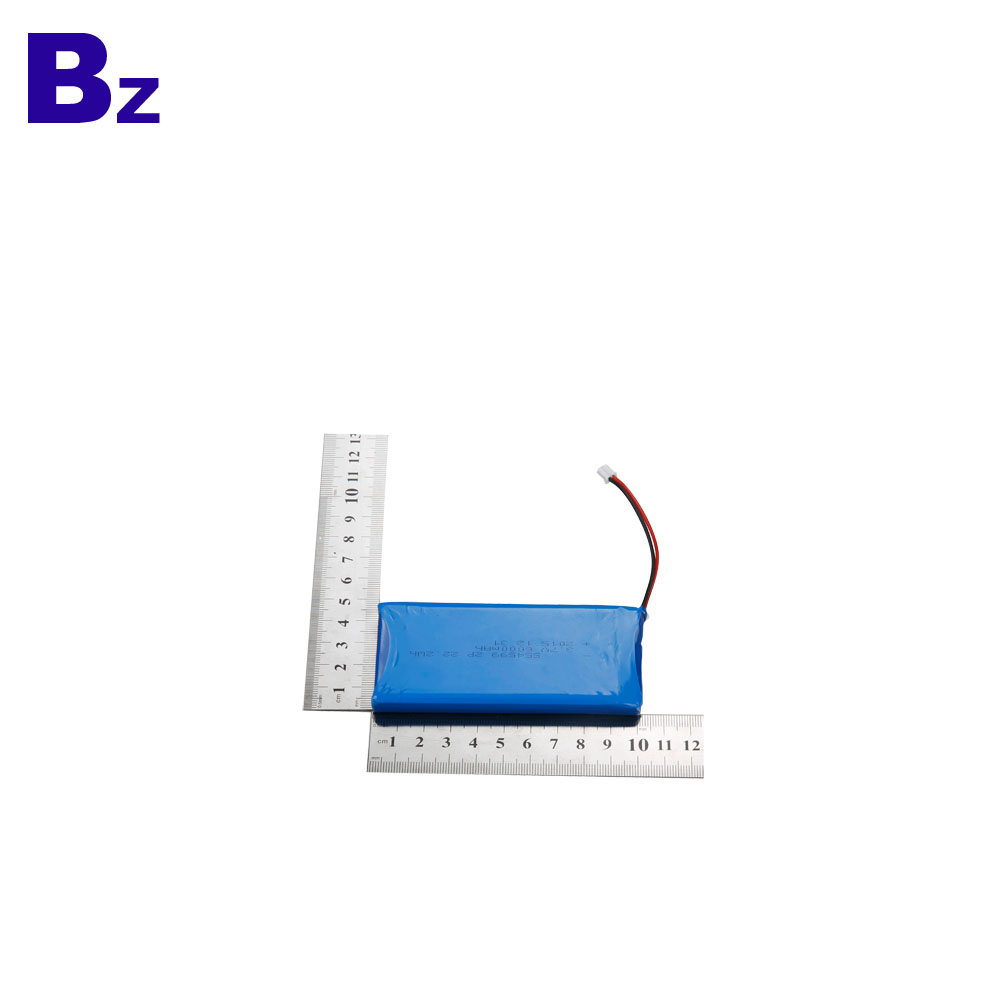

Size: 11*45*102mm
Nominal Capacity: 6000mAh
Product name: 554599 2P Li-ion battery
Warranty: 1 Year
Weight: 114g
Cycle life: 500 Times
Capacity: 6000mAh
Voltage: 3.7V
Application: Medical Device
Certificate: CE/RoHS/UN38.3/MSDS/KC/UL/CB/IEC62133
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
Medical Battery - BZ 554599 2P - 6000mAh - 3.7V - Lithium Ion Battery - Rechargeable
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity
|
Typical
|
6050mAh |
Standard discharge(0.2C C5A) after Standard charge
|
Minimum
|
6000mAh |
|||
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage
|
|
3 |
Voltage at end of Discharge |
2.75V |
Discharge Cut-off Voltage
|
|
4 |
Charging Voltage |
4.2±0.03V |
|
|
5 |
Internal Impedance
|
≤120mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
6 |
Standard charge
|
Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 6h
|
|
7 |
Standard discharge
|
Constant current 0.2 C5A end voltage 2.75V |
|
|
8 |
Fast charge
|
Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 3.5h |
