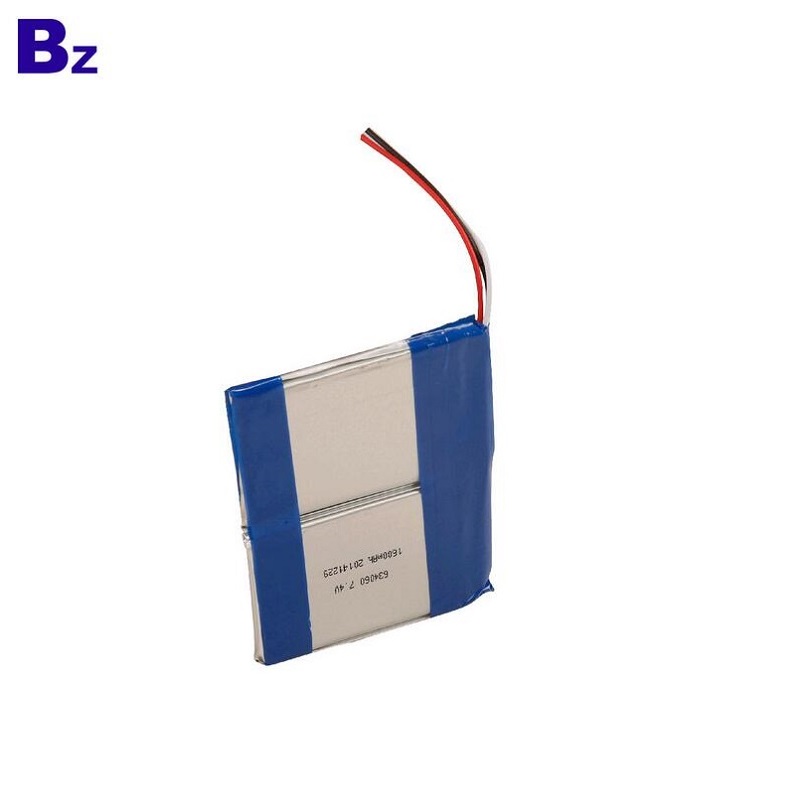

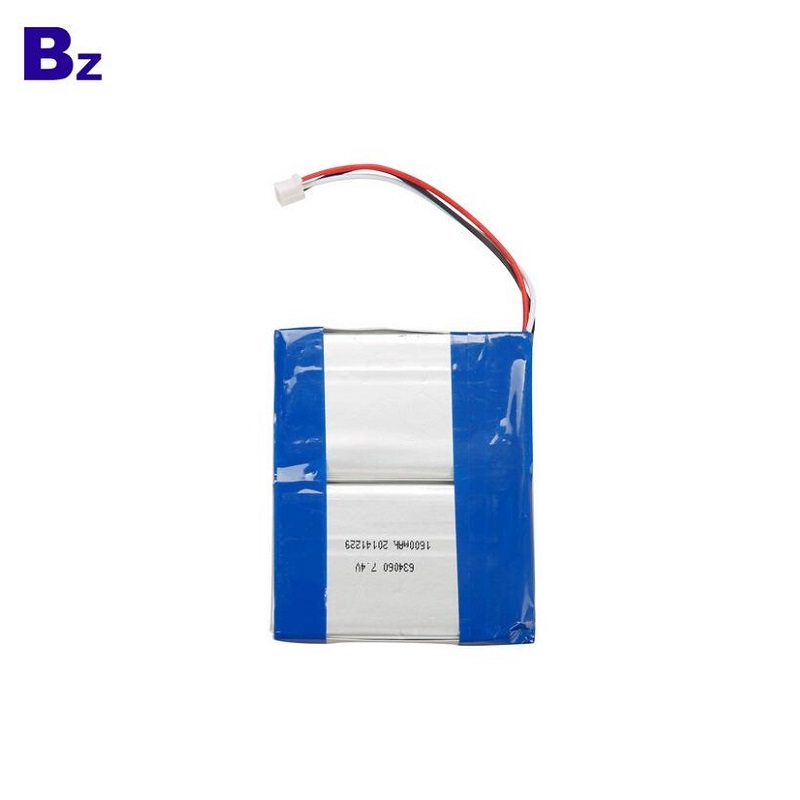

China Best Lithium Battery Manufacturer Customized High Quality Battery for Medical Devices BZ 634060 7.4V 1600mAh Li-polymer Battery
$5.20
In stock
SKU
BZ 634060 7.4V 1600mAh
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
- Place of Origin: Guangdong, China
- Brand Name: BZ
- Model Number: 634060
- Type: Li-Ion
- Nominal Voltage: 7.4V
- Size: 13*40*63mm
- Nominal Capacity: 1600mAh
- Product name: 634060-2S
- Warranty: 1 Year
- Weight: 60g
- Cycle life: 500 Times
- Capacity: 1600mah
- Voltage: 7.4V
- Application: medical equipement
- Certificate: CE/RoHS/UN38.3/MSDS
- Payment: Paypal.TT.Escrow.Western Union
Product Parameters
No. | Item | General Parameter | Remark | |
1 | Rated Capacity | Typical | 1620mAh | Standard discharge(0.2C C5A) after Standard charge |
Minimum | 1600mAh | |||
2 | Nominal Voltage | 7.4V | Mean Operation Voltage | |
3 | Voltage at end of | 6.0V | Discharge Cut-off Voltage | |
Discharge | ||||
4 | Charging Voltage | 8.4±0.03V | ||
5 | Internal Impedance | ≤80mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
Constant Voltage 8.4V | ||||
0.01 C5A cut-off | ||||
7 | Standard discharge | Constant current 0.2 C5A | ||
end voltage 6.0V | ||||
8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
Constant Voltage 8.4V | ||||
0.01 C5A cut-off | ||||
9 | Fast discharge | Constant current 0.5C5A | ||
end voltage 6.0V | ||||
10 | Maximum Continuous Charge Current | 1 C5A | ||
11 | Maximum Continuous Discharge Current | 1 C5A | ||
12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
Bare Cell | ||||
Discharge: -20~60℃ | ||||
13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
at the shipment state | ||||
less than 3 months: -20~40℃ | ||||
14 | Pack Dimension |
High:max62mm Width: max 40.5mm Thickness: max13mm |
Initial Dimension |
