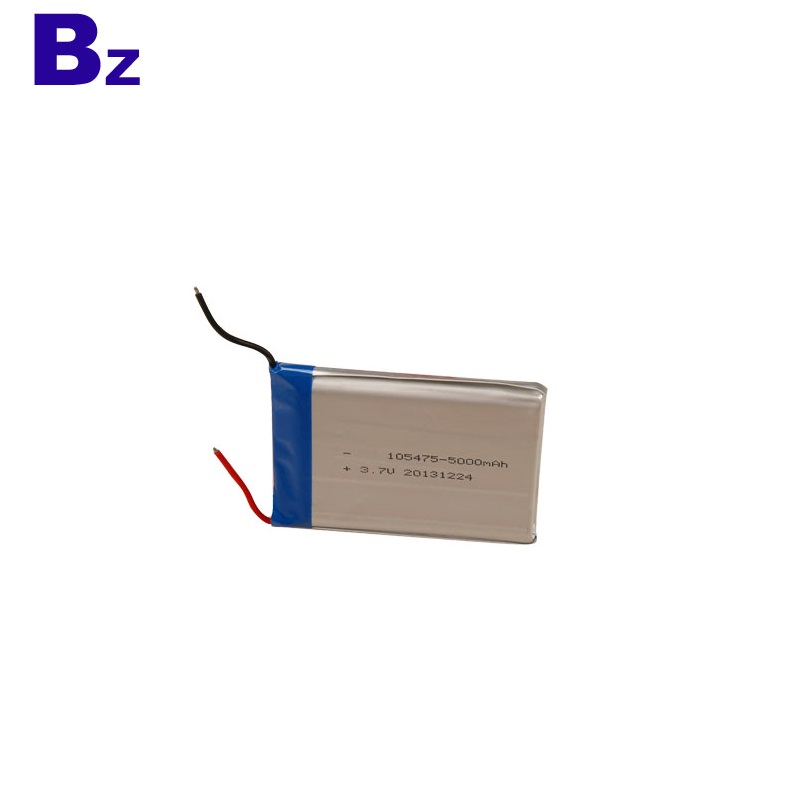

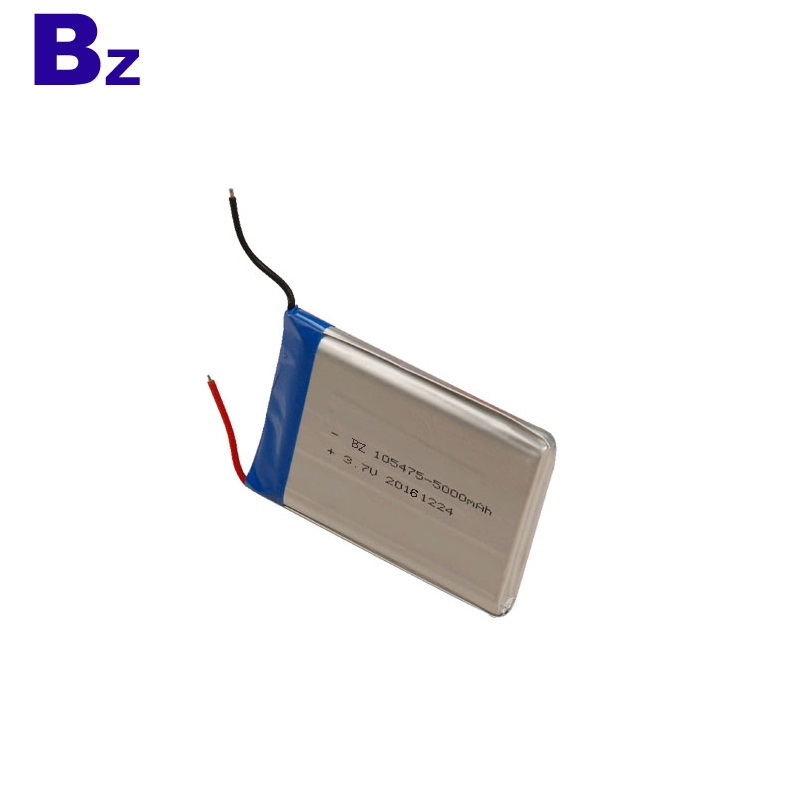

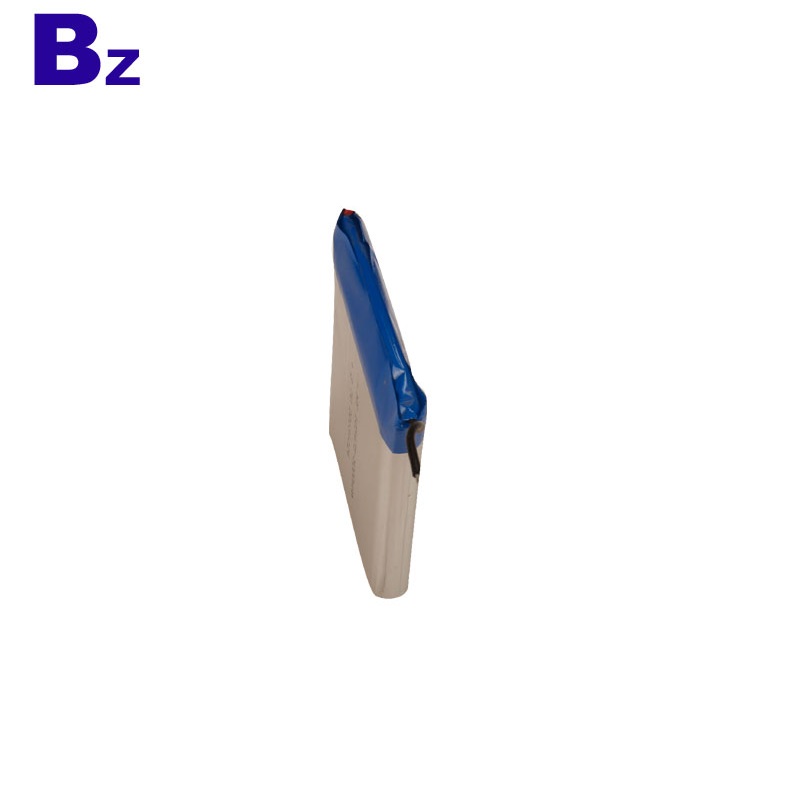

China Battery Manufacturer Supply Lipo Battery BZ 105475 5000mAh 3.7V Rechargeable Lithium Ion Battery
Price: US $5.5-6 / Piece
Min. Order: 1,000 Pieces
Please contact us for the order !
Brand Name: BZ
Model Number: 105475
Type: Li-polymer
Nominal Voltage: 3.7V
Size: 10*54*77mm
Nominal Capacity: 5000mAh
Product name: 105475 Li-ion battery
Warranty: 1 Year
Weight: 82g
Cycle life: 500 Times
Capacity: 5000mAh
Voltage: 3.7V
Application: Medical Device
Certificate: CE/RoHS/UN38.3/MSDS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
Digital Battery - BZ 105475 - 5000mAh - 3.7V - Lithium Ion Battery - Rechargeable
No. (序号) |
Item (项目) |
General Parameter (常规参数) |
Remark (备注) |
|
1 |
Rated Capacity (额定容量) |
Typical (典型容量) |
5050mAh |
Standard discharge(0.2C C5A) after Standard charge (标准充电后0.2C5A标准放电) |
Minimum (最小容量) |
5000mAh |
|||
2 |
Nominal Voltage (正常电压) |
3.7V |
Mean Operation Voltage (即工作电压) |
|
3 |
Voltage at end of Discharge (放电终止电压) |
2.75V |
Discharge Cut-off Voltage (放电截止电压) |
|
4 |
Charging Voltage (充电电压) |
4.2±0.03V |
|
|
5 |
Internal Impedance (内阻) |
≤120mΩ |
Internal resistance measured at AC 1KHZ after 50% charge (半电态下用交流法测量内阻) The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times (用出货后不到一个星期及循环次数不多于5次的新电池测量) |
|
6 |
Standard charge (标准充电) |
Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off (持续电流:0.2C5A 持续电压:4.2V 截止电流:0.01 C5A) |
Charge time : Approx 6h (充电时间:大约6个小时) |
|
7 |
Standard discharge (标准放电) |
Constant current 0.2 C5A end voltage 2.75V (持续电流:0.2C5A 截止电压:2.75V) |
|
|
8 |
Fast charge (快速充电) |
Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off (持续电流:0.5C5A 持续电压:4.2V 截止电流:0.01 C5A) |
Charge time : Approx 3.5h (充电时间:大约3.5个小时) |
